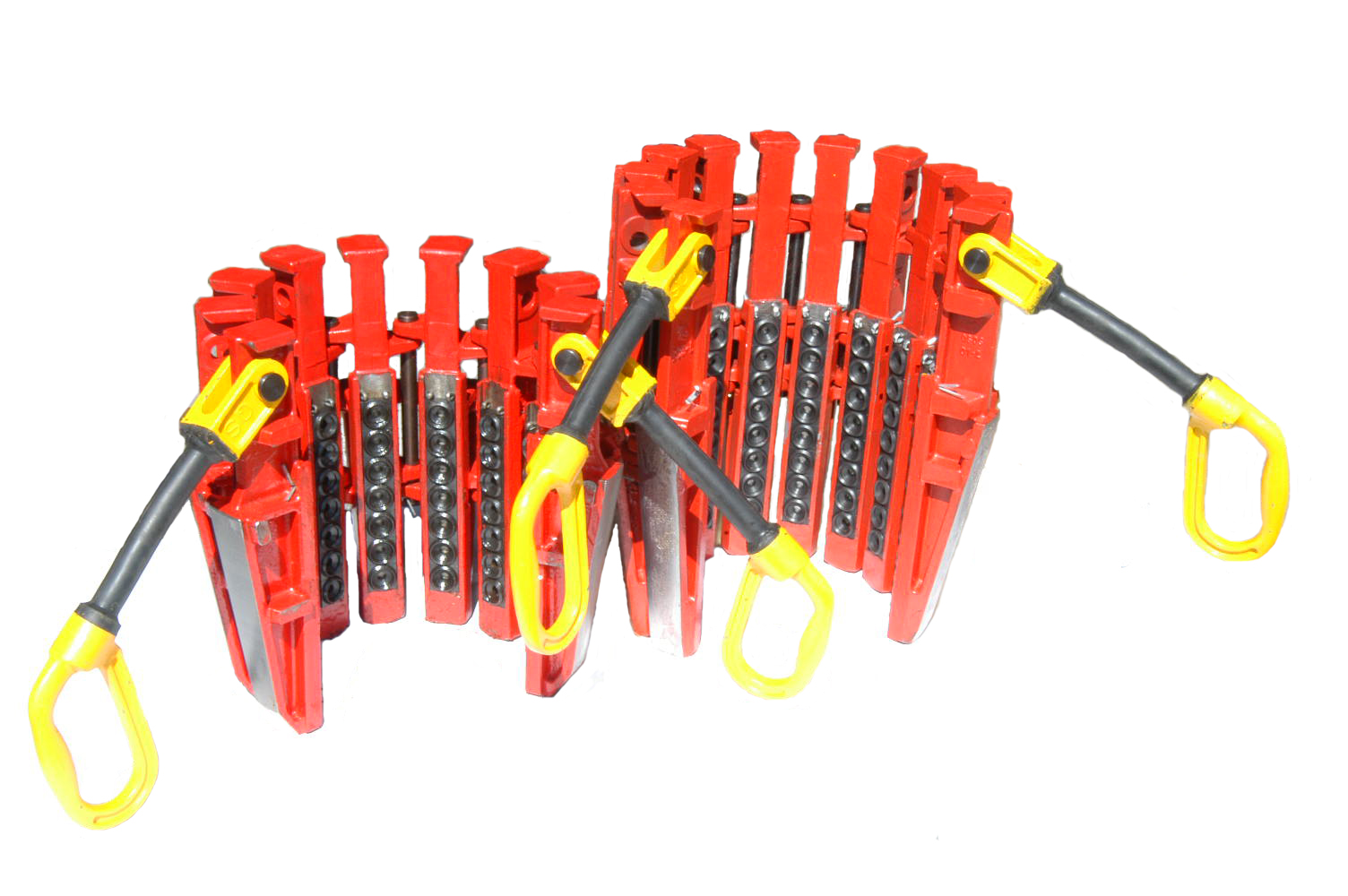

Drill Collar Slips - DCS-S, DCS-R, DCS-L
Specifications:
DCS Drill Collar Slips:
| Description | Slip Type, Size and Range (OD, inches) | |||||||
| DCS-R | DCS-L | |||||||
| 41/2 - 6 | 51/2 - 7 | 63/4 - 81/4 | 8 - 91/2 | 81/2 - 10 | 91/4 - 111/4 | 11 - 123/4 | 12 - 14 | |
| Weight lb (kg) | 120 (54) | 112 (51) | 154 (70) | 173 (78) | 185 (84) | 198 (90) | 256 (116) | 237 (107) |
| Total Number of Segments | 9 | 9 | 11 | 12 | 13 | 14 | 17 | 17 |
| Total Number of Intermediate Segments | 7 | 7 | 9 | 10 | 11 | 12 | 15 | 15 |
| Total Number of Hinge Pins | 8 | 8 | 10 | 11 | 12 | 13 | 16 | 16 |
| Use in Insert Bowl number | API OR No.3 | No.3 | No.2 | No.1 | ||||
Circular Buttons for DCS Drill Collar Slips:
| Slips |
Slips Size Drill Collar Range
(inches) |
Circular Buttons | |||
| Part No. | Weight | Qty Per Set | |||
| lb | kg | ||||
| DCS-R | 41/2 - 6 | 2628-63 | 16 | 7.3 | 63 |
| 51/2 - 7 | 2620-63 | 8 | 3.6 | 63 | |
| DCS-L | 63/4 - 81/4 | 2630-88 | 11 | 5 | 88 |
| 8 - 91/2 | 2630-96 | 12 | 5.4 | 96 | |
| 81/2 - 10 | 2627-104 | 26 | 11.8 | 104 | |
| 91/4 - 111/4 | 2630-112 | 14 | 6.3 | 112 | |
| 11 - 123/4 | 2625-136 | 36 | 16.3 | 136 | |
| 12 - 14 | 2630-136 | 17 | 7.7 | 136 | |
