Using 31/2" slip body assembly, Tubing size capacity is 23/8" through 31/2” (60.33 mm – 88.90 mm) O. D. with a full 6” (152.40 mm) of vertical gripping length around the tubing to prevent pipe crimping.
Use two slip body assembly, Model C tubing spiders can handle various tubing sizes from 23/8”—41/2”.
Tubing Spiders Type 50A
Tubing Spiders Type 80C
Ordering Information:
| Description | Part No. | Qty. | Weight Ea. | |
| lb | kg | |||
| Tubing Spider for 50T, with Slips | QSTS02-00 | 1 | 171 | 77.5 |
| Model “C” Spider for 50T, w/o Slips | QSTS02-00B | 1 | 147.5 | 67 |
| Slip Body 31/2” assembly, w/o Inserts | QSTS02-00C | 3 | 19.8 | 9.0 |
| Insert 23/8" (60.33mm) for 31/2” Slip | QSTS02-17-1 | 6 | 3.3 | 1.5 |
| Insert 27/8" (73.03mm) for 31/2” Slip | QSTS02-17-2 | 6 | 6.4 | 2.9 |
| Insert 31/2” (88.90mm) for 31/2” Slip | QSTS02-17-3 | 6 | 8.1 | 3.7 |
| Lift Arm (left) | QSTS02-12 | 1 | 1.8 | 0.8 |
| Lift Arm (right) | QSTS02-10 | 1 | 1.8 | 0.8 |
| Cylinder 50T | QSTS02-9 | 1 | 5.3 | 2.4 |
MODEL “C” SPECIFICATIONS:
| HEIGHT | 171/8"（435mm） |
| BASE DIMENSION | 181/4 x 19" (463mm x 482mm) |
| GATE OPENING | 61/16" (154mm) |
| BOWL OPENING | 51/16" (128mm) |
| TUBULAR RANGE | 23/8", 27/8", 31/2" |
| MAXIMUM LOAD CAPACITY | 176,000Lbs (80T) |
Ordering Information:
| Description | Part No. | Qty. | Weight Ea. | |
| lb | kg | |||
| Model “C” Spider for 80T, w/o Slips | QSTS01-00A | 1 | 346 | 157 |
| Slip Body 31/2” assembly, w/o Inserts | QSTS01-7A | 4 | 51 | 23 |
| Insert 23/8" (60.33mm) for 31/2” Slip | QSTS01-11 | 4 | 18 | 8.0 |
| Insert 27/8" (73.03mm) for 31/2” Slip | QSTS01-10 | 4 | 15 | 6.8 |
| Insert 31/2” (88.90mm) for 31/2” Slip | QSTS01-9 | 4 | 9.7 | 4.4 |
| Slip Body 41/2” assembly, w/o Inserts | QSTS01-26A | 4 | 43 | 19.4 |
| Insert 31/2” (88.90mm) for 41/2” Slip | QSTS01-25 | 4 | 23 | 10.4 |
| Insert 4” (101.60mm) for 41/2” Slip | QSTS01-24 | 4 | 17 | 7.8 |
| Insert 41/2” (114.30mm) for 41/2” Slip | QSTS01-23 | 4 | 12 | 5.4 |
| Cylinder 80t | QSTS01-20 | 1 | 14 | 6.5 |

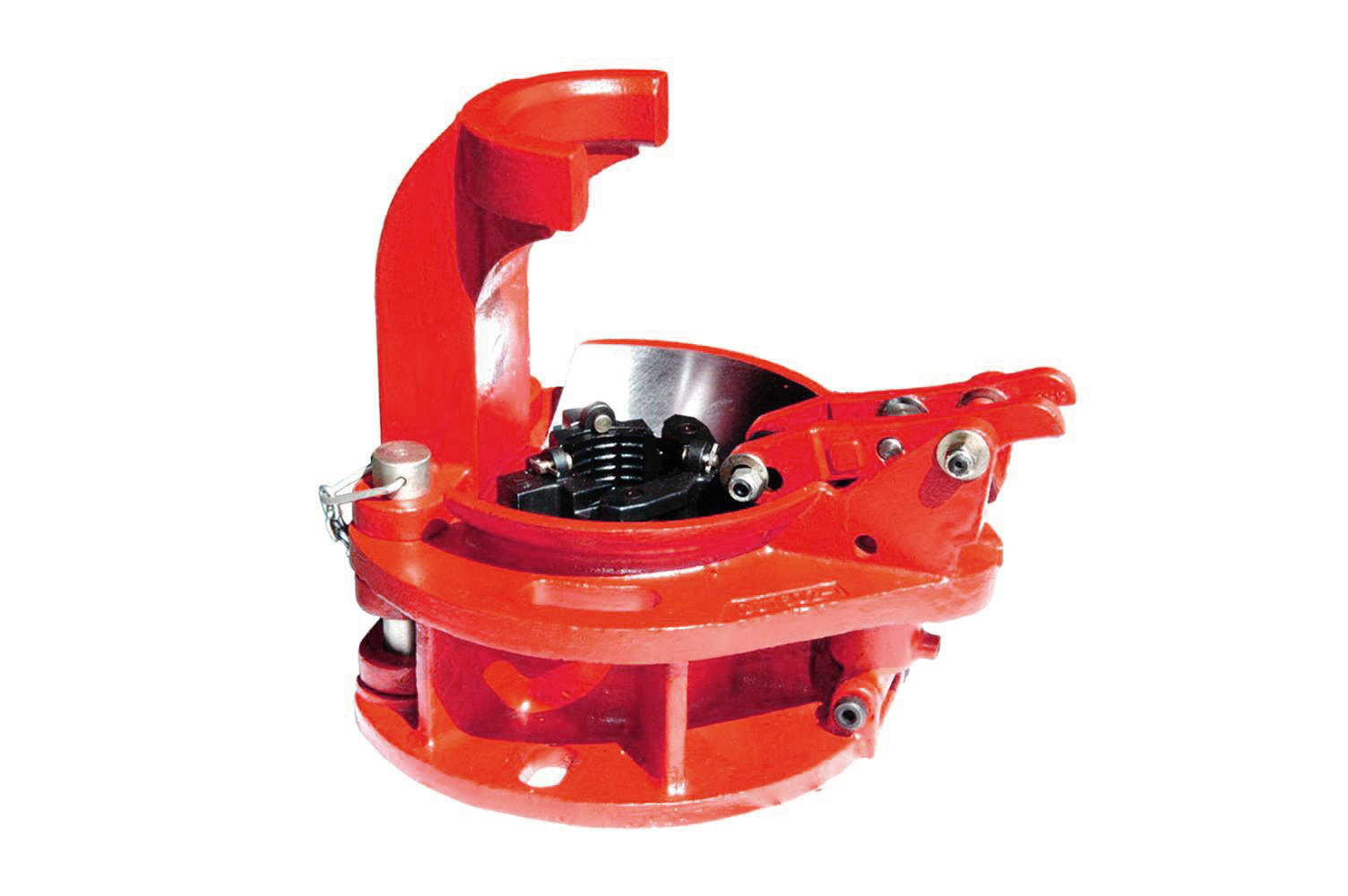

AIR SLIP Type A, 50 Ton

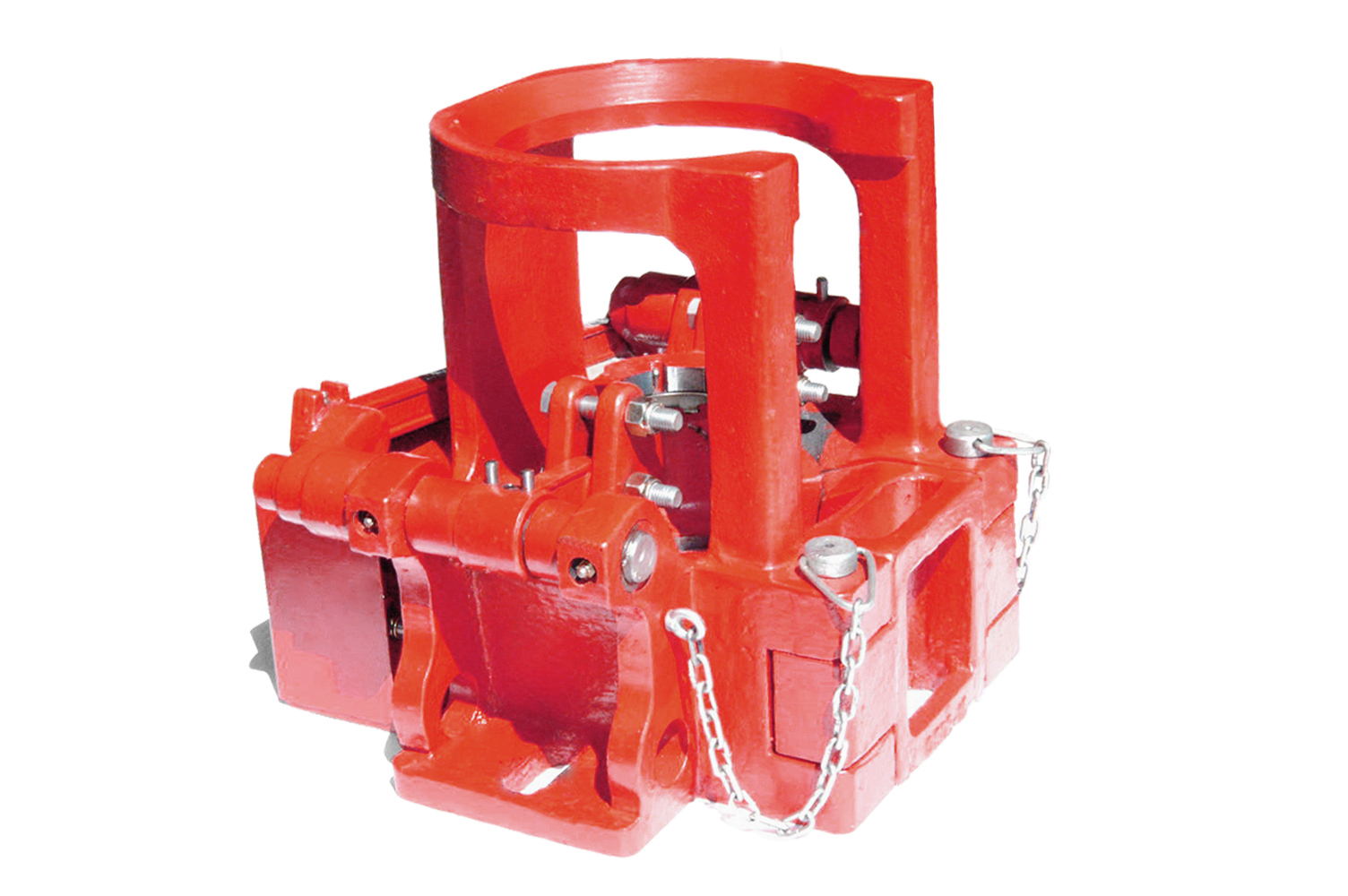

AIR SLIP Type C, 80 Ton
