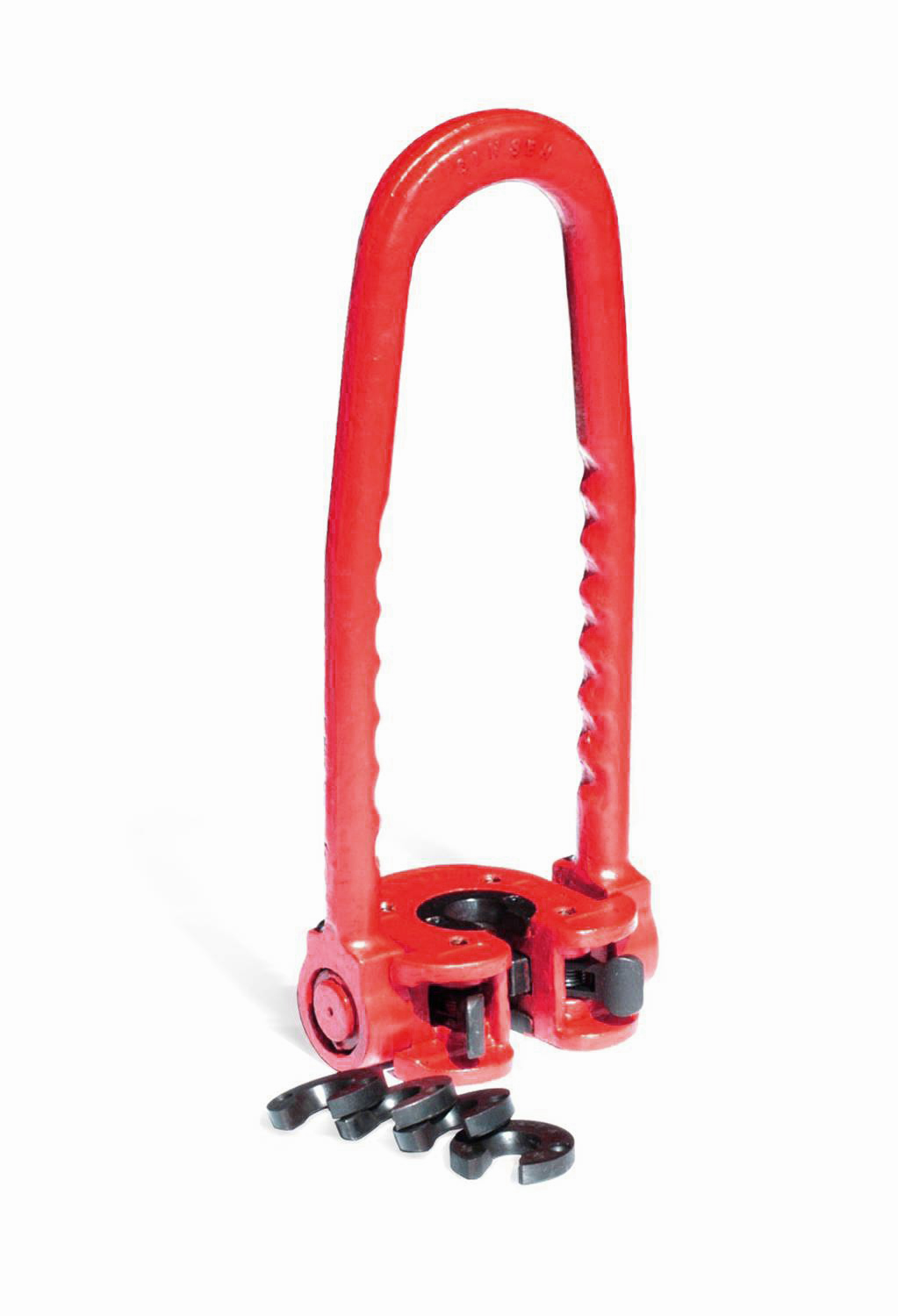

Sucker Rod Elevators - 25 Ton, Plate-Type
Safe efficient handling of Sucker Rod sizes from 5/8"(15.88 mm) through 11/8"(28.58 mm). Can also handle hollow type Sucker Rod and Tubing.
Specifications:
| Elevator Complete | Parts | |||||
| Rod Size | Part No. |
Wt.
lb. (kg) |
API Rated
Cap.-Labs. |
Part No. |
Wt.
lb. (kg) |
|
| 5/8", 3/4" | QSSR01-6 | (35.2) 16 | 43,000 | Front Latch | QSSR01-3 | 0.42 (0.19) |
| 3/4", 7/8" | QSSR01-7 | (35.2) 16 | 43,000 | Rear Latch | QSSR01-4 | 0.35 (0.16) |
| 1" | QSSR01-8 | (35.2) 16 | 43,000 | Latch Pin | QSSR01-9 | 0.11 (0.05) |
| 11/8” | QSSR01-9 | (35.2) 16 | 43,000 | Spring | QSSR01-10 | 0.05 (0.025) |
